Applications

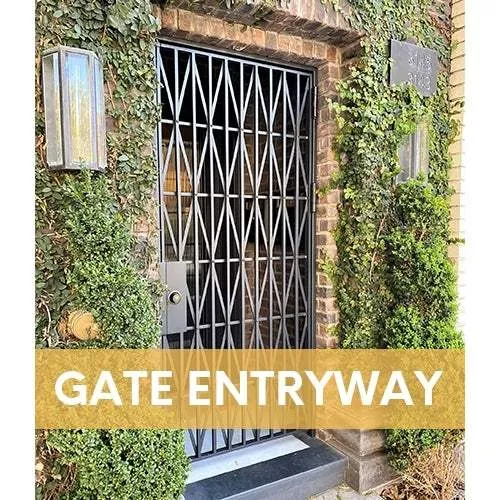

- Gate Entry
- Pool Gate

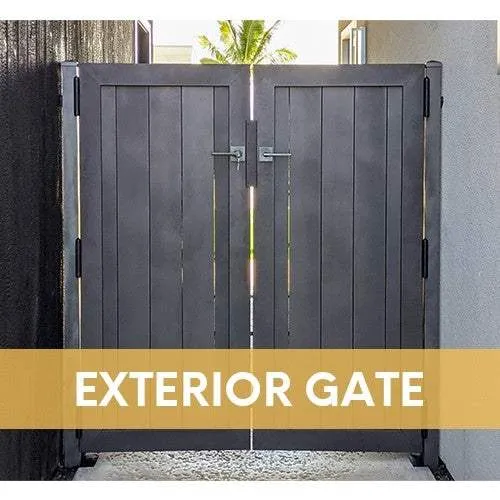

- Fully Exterior
- Courtyard Style
- Breezy environments

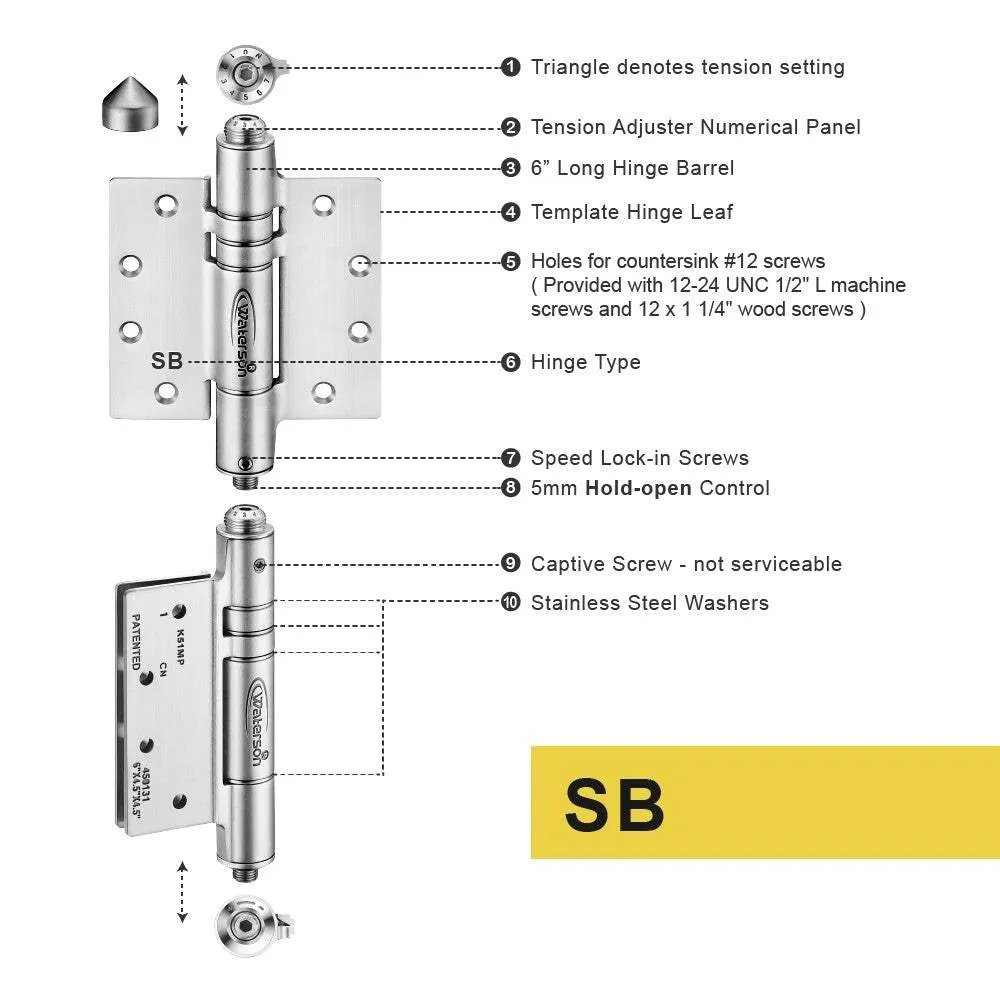

Product Description and Features
- Fully adjustable closing force and speed according to environment needs

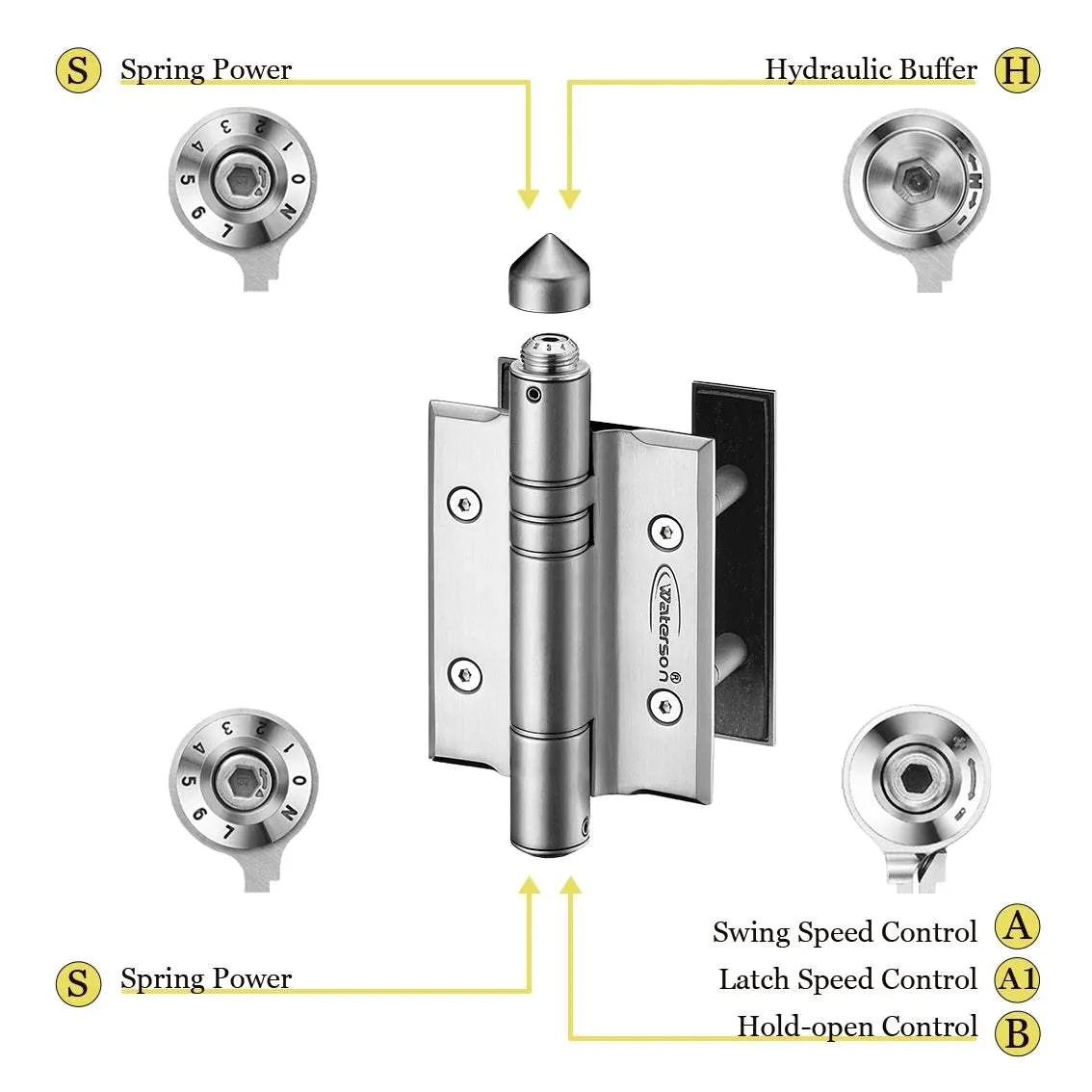

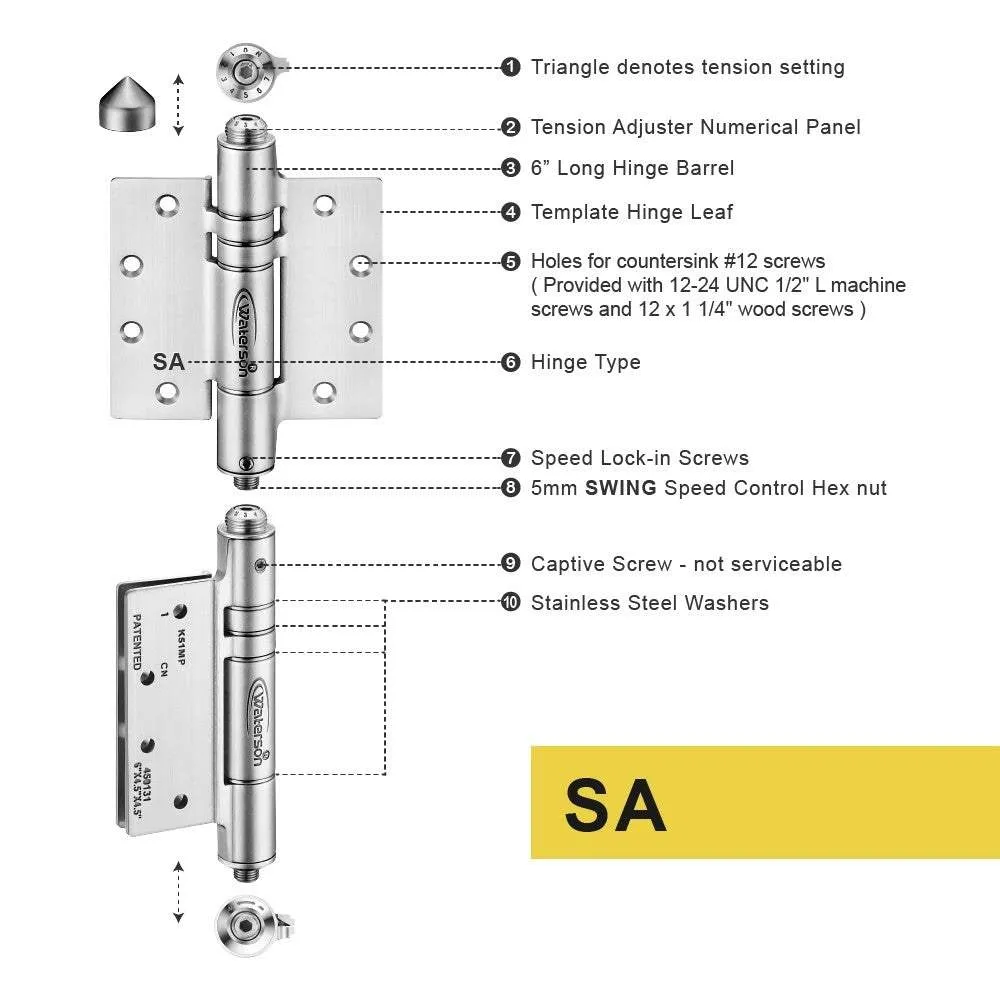

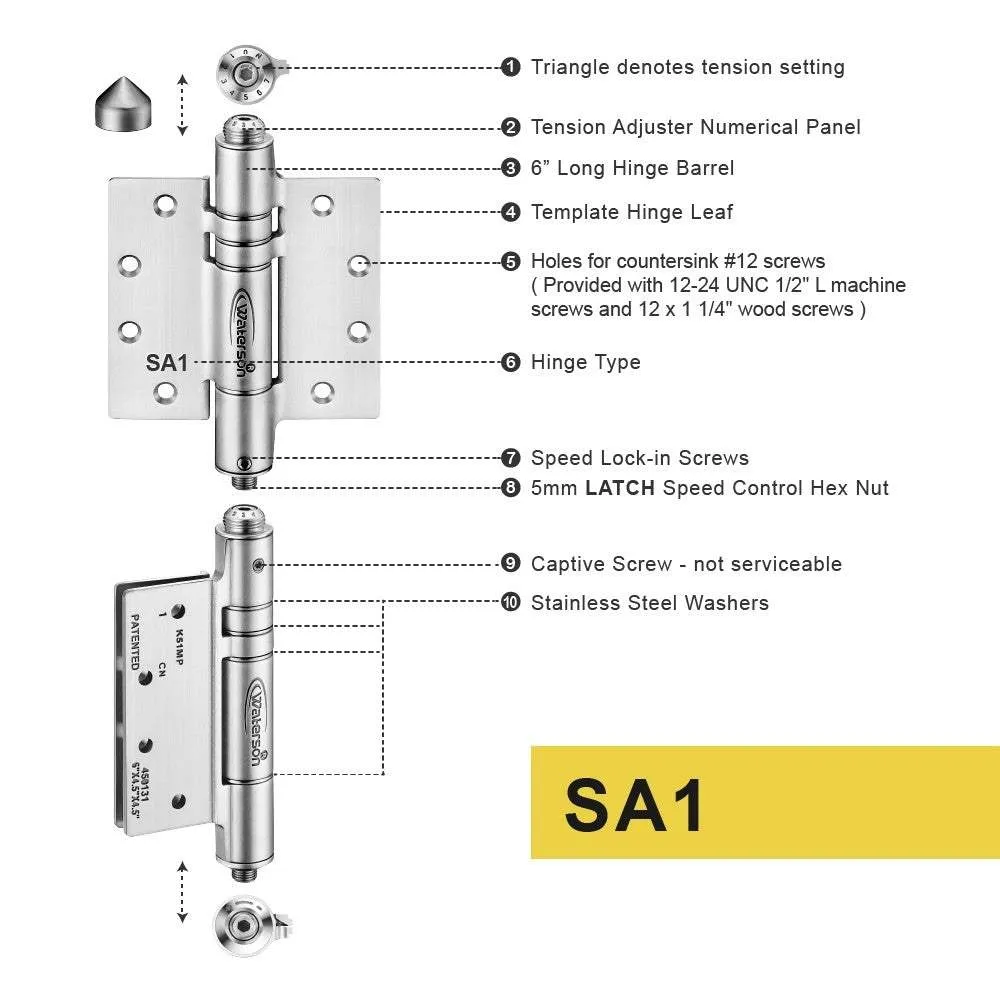

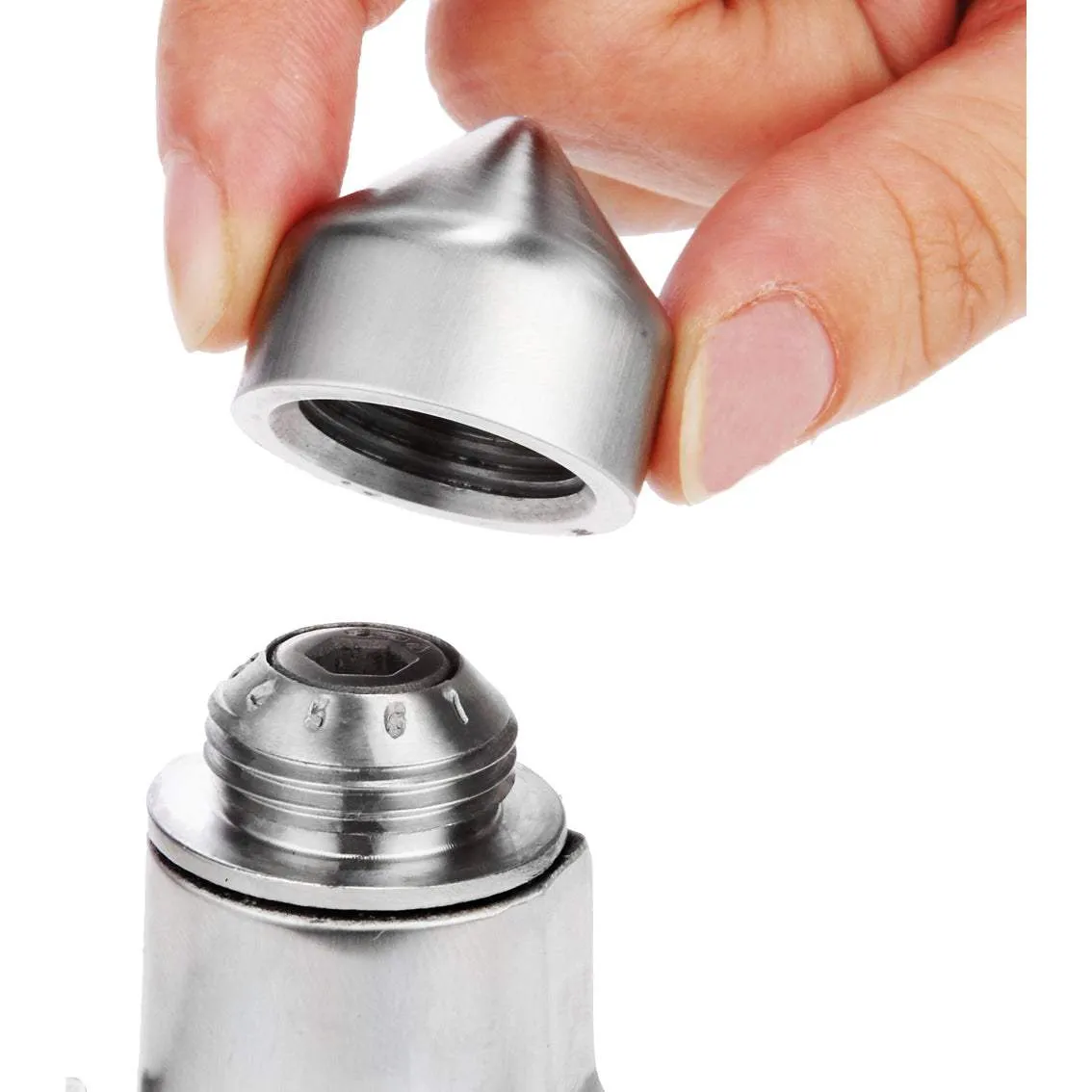

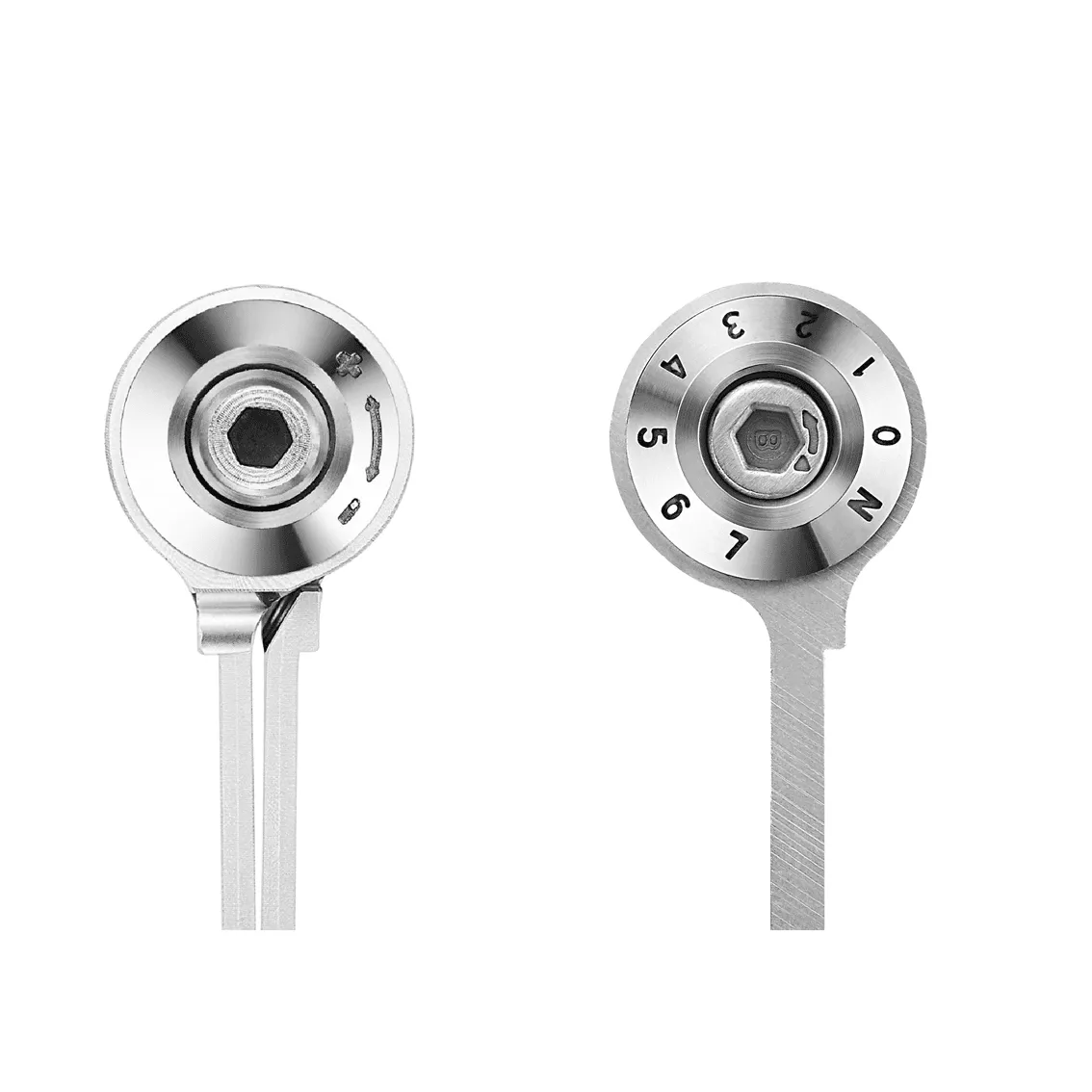

- Numerical adjustment panel on hinge end to set up precise tension
- Mechanical-only mechanism supporting heavy duty and fully exterior
- Aesthetically pleasing compared to door closers -- without extrusive arms
- UL-certified cycle testing ensures many years of low maintenance.

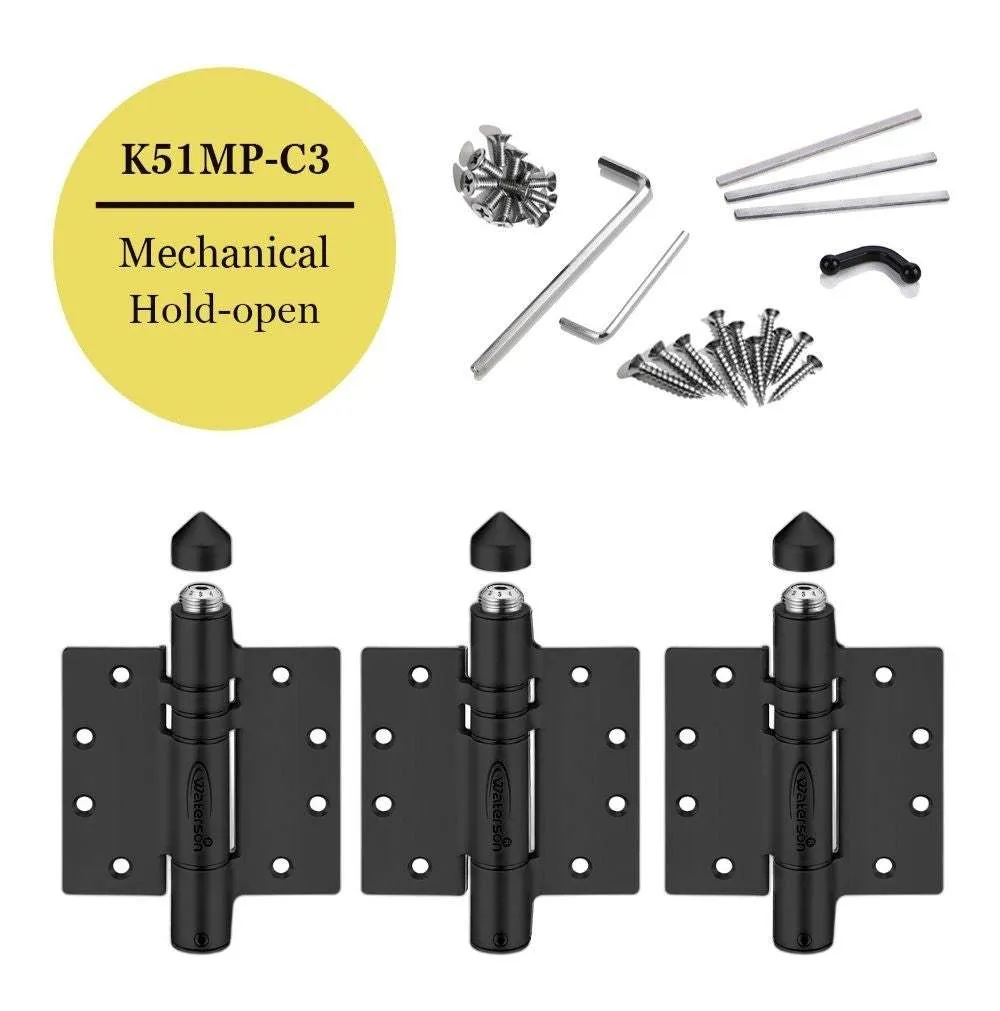

Installation Kits
- Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
- Three steel adhesive shims for gap adjustment between door and frame as needed
- Tension Crook: Keeps hinge open during installation
- 5mm & 3mm hex allen wrenches
Compliance Standards
- ANSI A156.17 Grade 1: one million cycle testing
- ANSI A156.7 Template Hinge : 4.5" x 4.5"
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force: opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
- ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers

Product SKU	K51MP-C3
Hinge Type	Between square posts

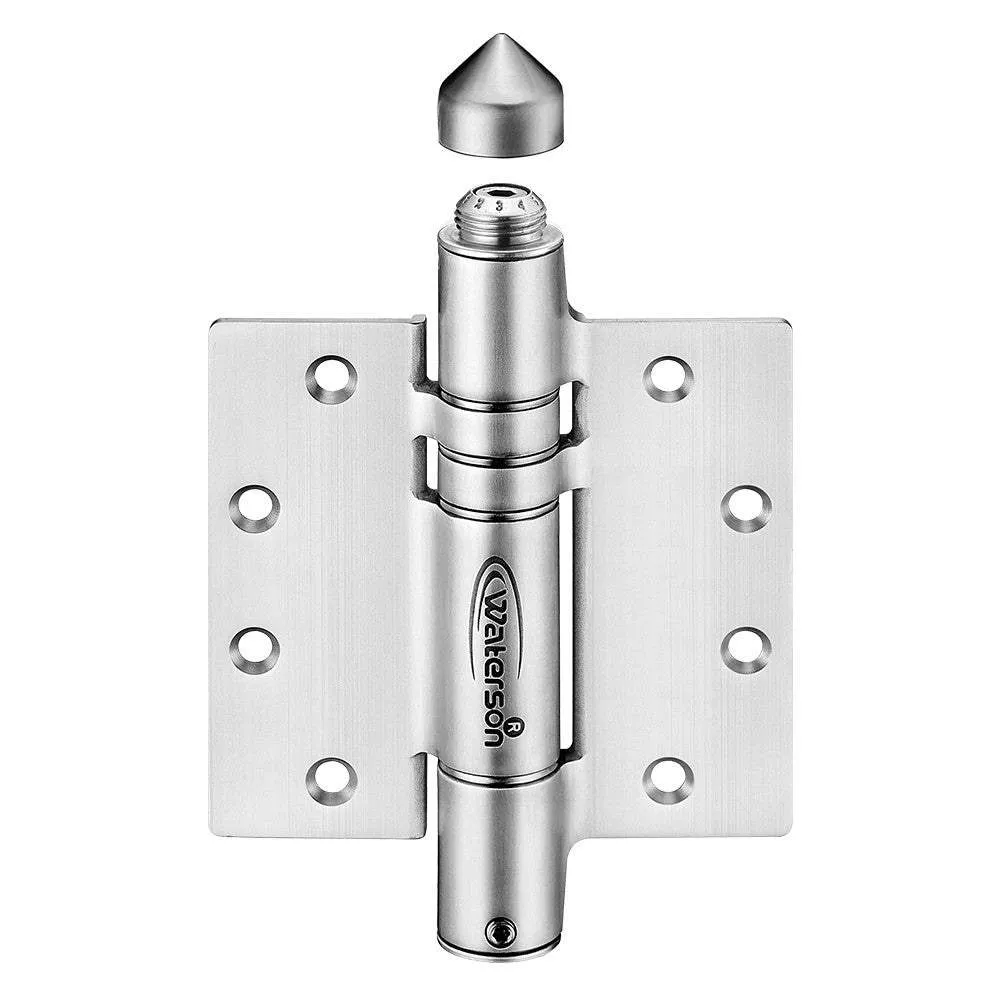

Hinge Material	Stainless Steel
Door Weight	Up to 260lbs (75kg)
Approx Door Size	1150mm W x 2200mm H (4ft x 7ft)
Door Thickness	1 ¾” (40-50 mm)
Self-closing	o
Fluid Motion	x
Hold-open	x
Fixing Method	Screw-On, only spot weld AFTER speed adjustment

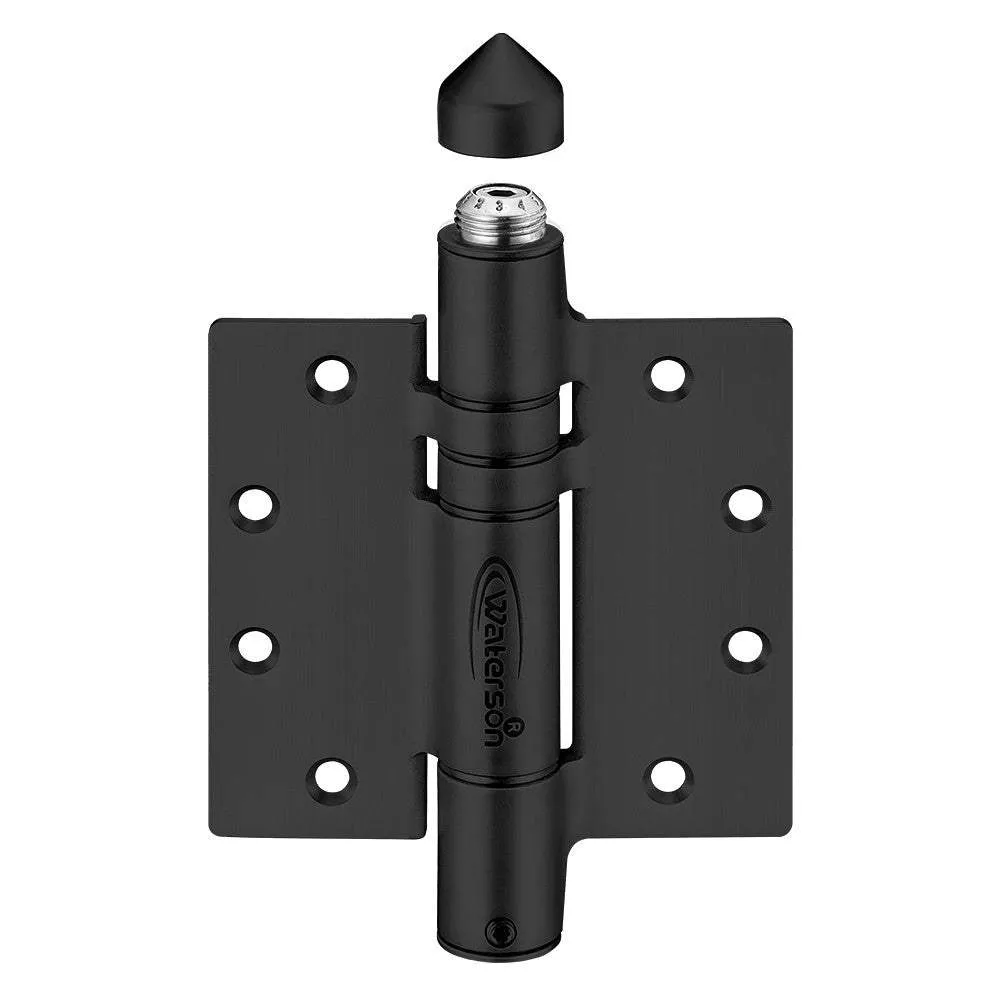

Color/Finish	Satin Brushed, Black
Combination/Quantity	SA.SA.SA1,3 Pack
